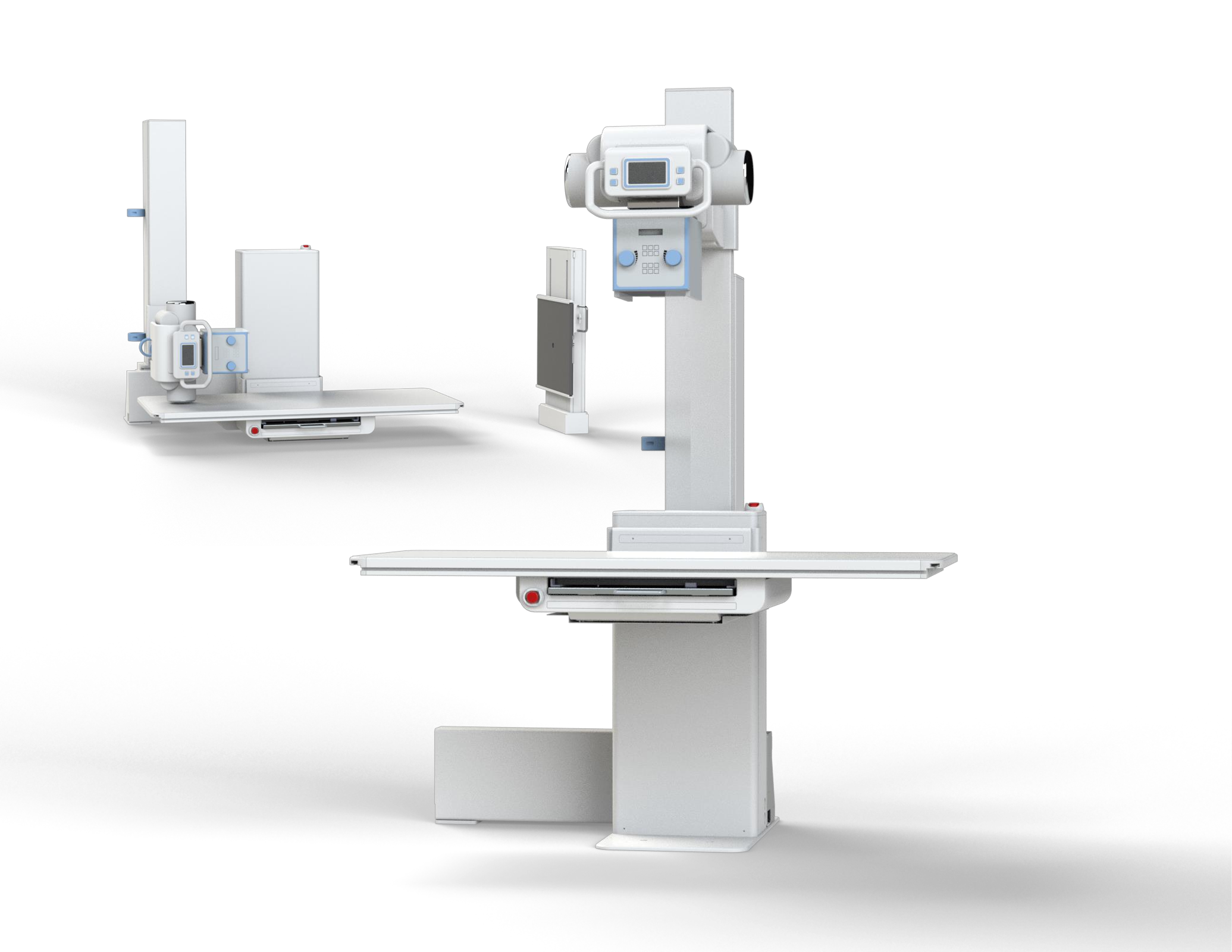

DRAY VX210

Versatile 40kW VET System with Adjustable Geometry

The Dray-VX210 (LOVET-210) is designed for ultimate flexibility in veterinary imaging. Featuring an adjustable SID (70-125cm), tube rotation, and a low-height table, it allows for easy positioning of large animals and diverse diagnostic angles.

Flexible Imaging: Adjustable SID & Tube Rotation (±95°)
High Power Options: 32kW Monoblock or 40kW Rotating Tube
Patient Friendly: Low Tabletop for easy access with heavy dogs
Smart Control: Digital Servo Motor Collimator

Inquiry Now

Technical Specifications

Max Power	32 kW (Monoblock) or 40 kW (Rotating Tube)
X-Ray Tube	Canon E7840 (32kW) / Canon 7239 (40kW) [cite: 22, 24]
kV / mAs Range	40~125kV / 0.5~400mAs
Collimator	Digital Servo Motor / 4.3" Touch Display / SID Sensor
Table Geometry	Adjustable SID (70~125cm) / Low Table Top [cite: 36]
Tube Movement	Rotation ±95° / Slide Movement (Left/Right) [cite: 39]
Input Power	120V / 220-240V~ (50/60) Hz

Key Advantages

★ Low Table Top: Designed for heavy dogs. No need to lift them by force as the table goes low enough[cite: 34].
★ Adjustable SID: SID can be adjusted from 70cm to 125cm. Shorter SID means lower dose[cite: 36, 37].
★ Tube Rotation & Slide: Tube rotates ±95° and slides, offering versatile options for positioning and examinations[cite: 39].
