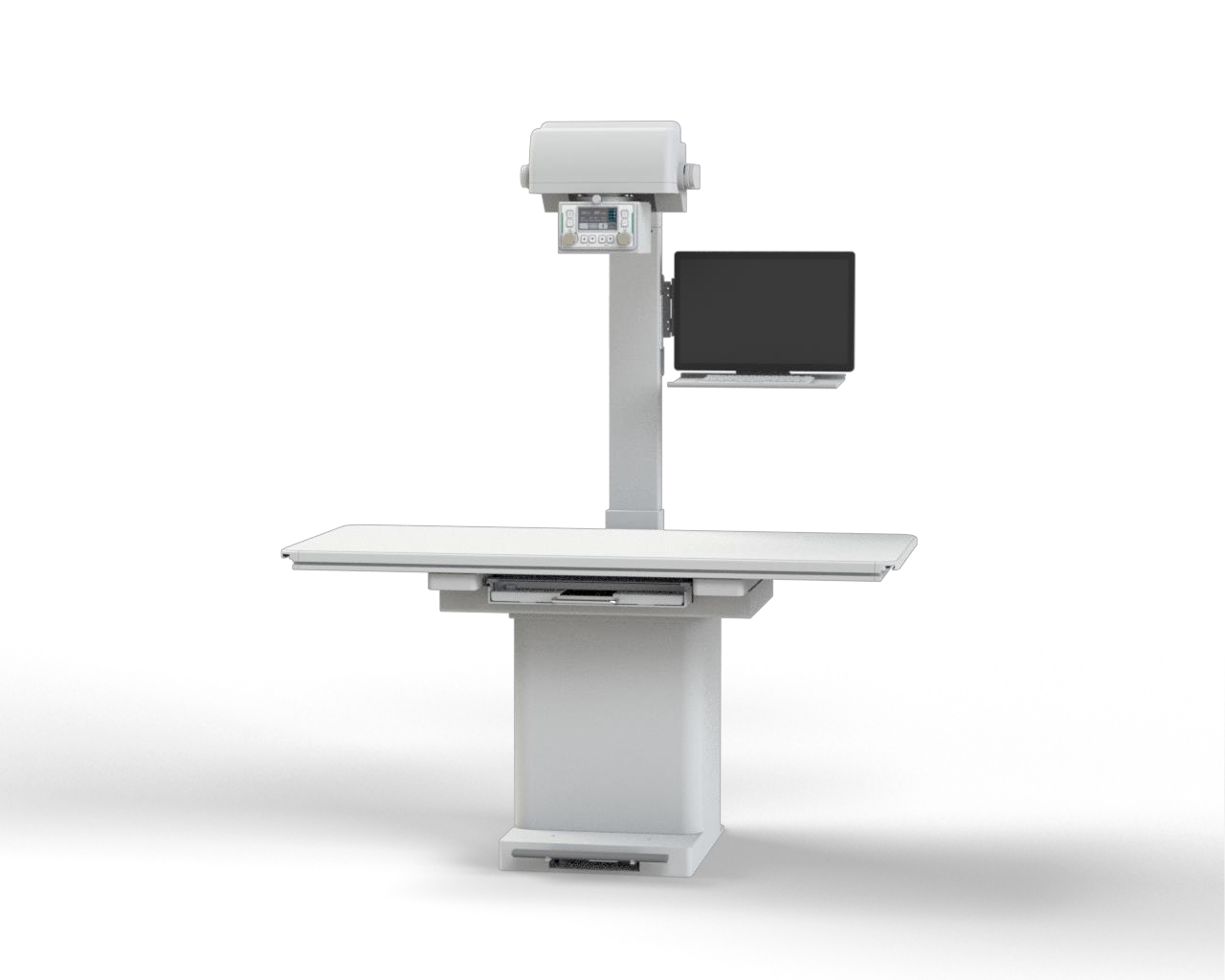

DRAY VX120 System

DRAY VX120

32kW High-Performance VET X-Ray System

The Dray-VX120 (LOVET-120) delivers superior imaging quality with a powerful 32kW generator and high-end Canon tube. Featuring a smooth 4-way floating table and Auto Collimator, it ensures precise positioning and crystal-clear diagnostics for all animal sizes.

  • High Output: 32kW Power (Max 125kV)
  • Premium Tube: Canon E7846 (0.6/1.3mm Focal Spot)
  • Smooth Workflow: 4-Way Floating Table (150cm)
  • Smart Tech: Auto Collimator with Touch Screen
Inquiry Now

Technical Specifications

Output Power 32 kW (Large Focus) / 11 kW (Small Focus)
X-Ray Tube Canon E7846 (Focal Spot 0.6/1.3mm)
kV / mAs Range 40~125kV / 0.5~400mAs
Collimator Auto Collimator / 4.3" Touch Screen / SID Sensor
Table 150cm 4-Way Floating / Max Weight 135kg
SID (Source to Image) 105 cm (Fixed)
Input Power 120V / 220-240V~ (50/60) Hz
Weight 230 kg

Key Advantages

  • Powerful Imaging: 32kW high output & small focal spot for clearer, high-resolution images.
  • Easy Positioning: 4-way floating table provides better ability on positioning animals than fixed types.
  • User Friendly: Easy-to-learn interface with visible status monitoring at all times.
  • Silent Operation: Noiseless, non-powered mechanical brakes applied.
