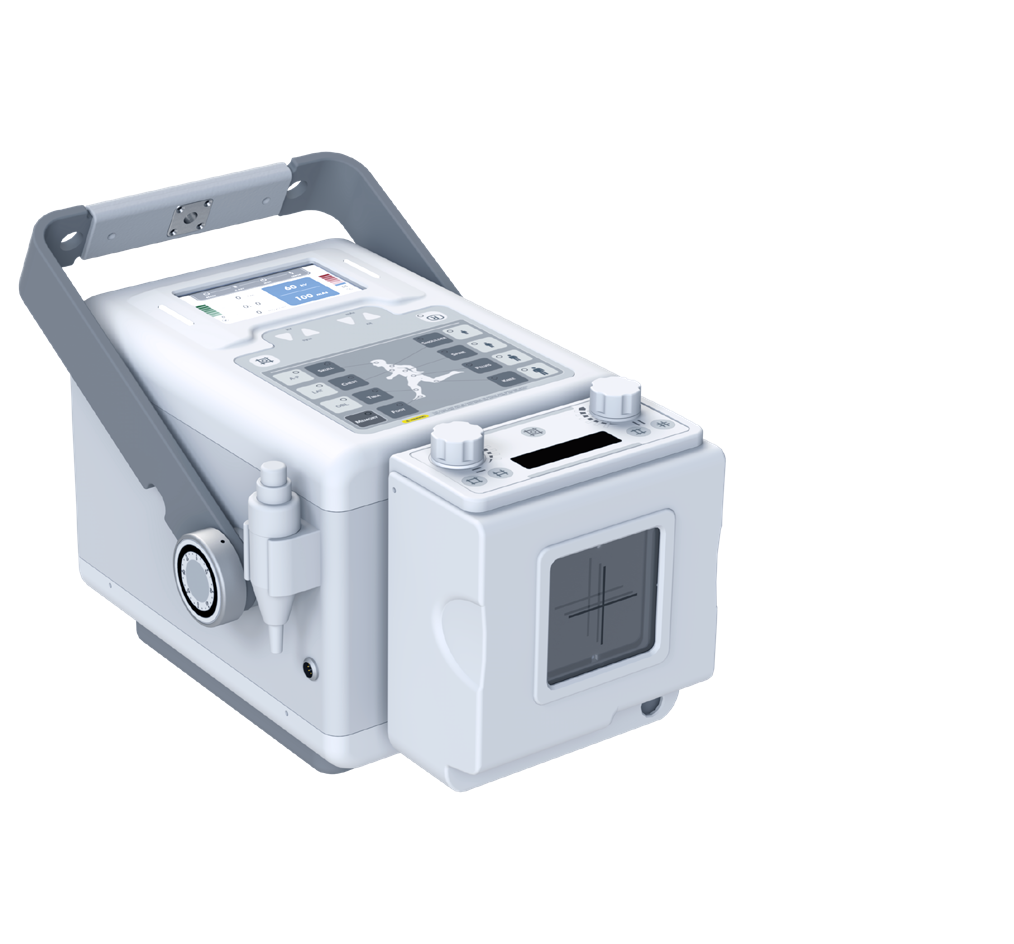

DRAY PX50S

5kW Ultra-Capacitor Hybrid X-Ray System

The Dray-PX50S (SPX-050-S) revolutionizes portable imaging with Ultra-capacitor technology. Combining high 5kW output with rapid charging and cordless capability, it offers the ultimate flexibility. Features an Auto Collimator and 5" touch screen for seamless operation.

Hybrid Power: Ultra-capacitor Type (Cordless Capable)
High Performance: 5kW Output / Max 110kV
Smart Tech: Auto Collimator & Ultrasound SID Sensor
User Friendly: Large 5" LCD Touch Screen

Inquiry Now

Power Source	Ultra-capacitor Type (Fast Charging)
Output Power	5 KW (High Frequency Inverter 100kHz)
kV Range	40 ~ 110kV (1kV Step)
mAs Range	0.32 ~ 200mAs (Max 100mA)
Collimator	Auto Collimator / LED Lamp (>100 lux)
Display	5" LCD Screen
Sensors	Ultrasound SID Sensor
Focal Spot	1.8 mm (Target Angle 16°)
Input Power	120V / 220-240V AC (50/60Hz)
Weight	18.5 kg

Power Source

Ultra-capacitor Type (Fast Charging)

Output Power

5 KW (High Frequency Inverter 100kHz)

kV Range

40 ~ 110kV (1kV Step)

mAs Range

0.32 ~ 200mAs (Max 100mA)

Collimator

Auto Collimator / LED Lamp (>100 lux)

Display

5" LCD Screen

Sensors

Ultrasound SID Sensor

Focal Spot

1.8 mm (Target Angle 16°)

Input Power

120V / 220-240V AC (50/60Hz)

Weight

18.5 kg

DRAY PX50S

Technical Specifications

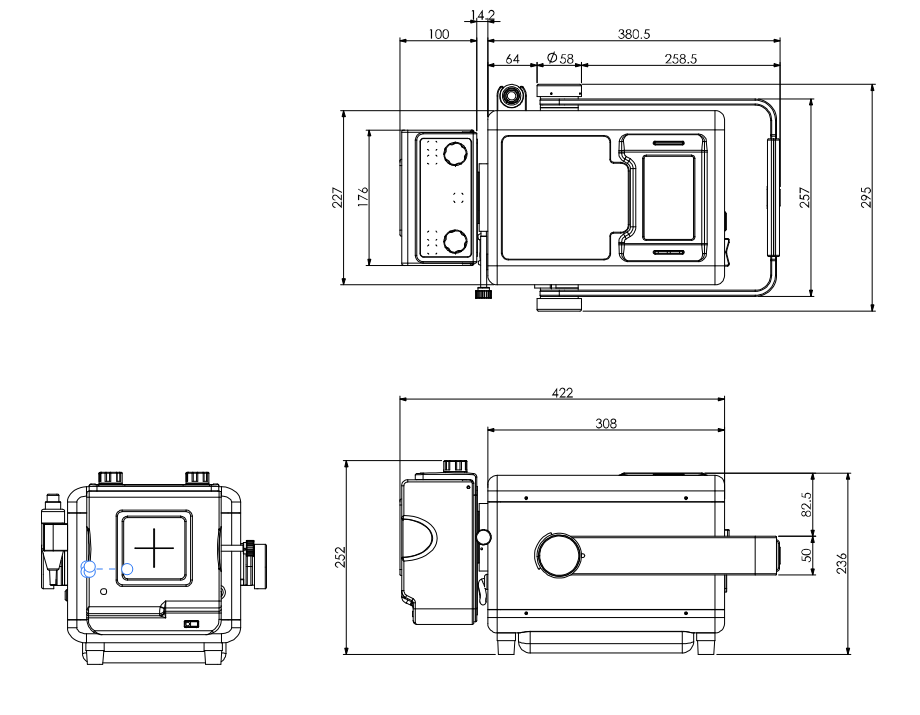

Dimensions
