5kW High-Power Portable X-Ray System
The DRAY-PX50 (SPX-050) is a powerful 5kW portable X-ray solution designed for deeper penetration and clearer imaging. Featuring a high-capacity Canon tube and advanced laser collimation, it delivers hospital-grade performance in a portable form factor.
| Output Power | 5 kW (Large Focus) |
|---|---|
| kV Range | 40 ~ 110kV (1kV Step) |
| mAs Range | 0.32 ~ 200mAs (Max 100mA) |
| X-ray Tube | Canon DF-183 / Focal Spot 1.8mm |
| Collimator | Manual / Laser Point / LED Lamp (>100 lux) |
| Sensors | Ultrasound SID Sensor |
| Input Power | 200-240V AC (50/60Hz) |
| Weight | 17.5 kg |

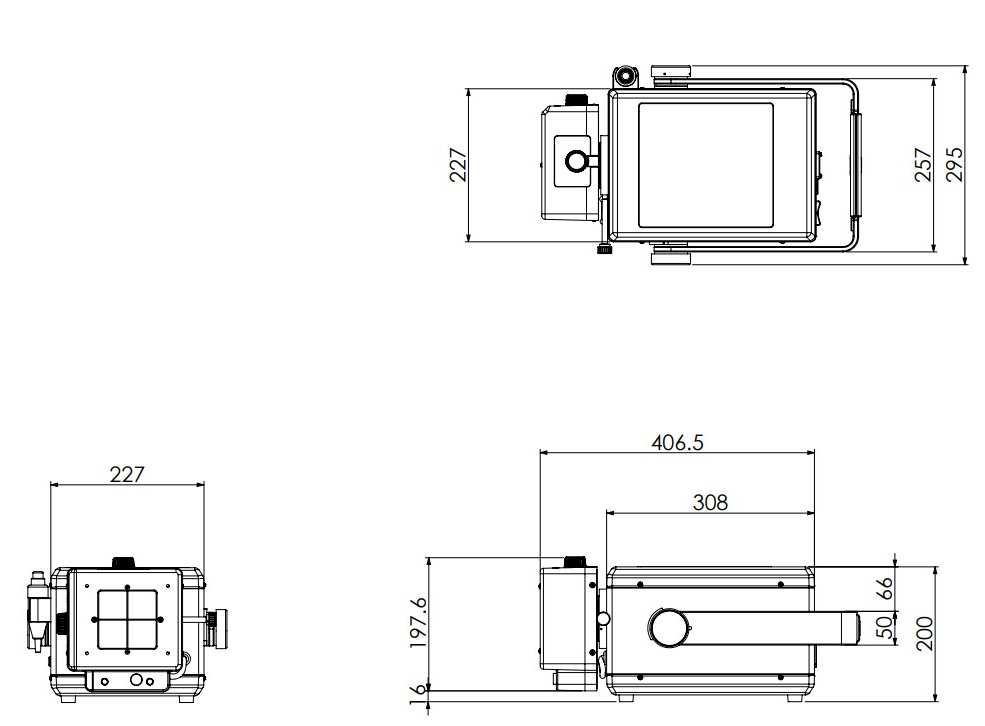

* Unit: mm / High-Power Design
