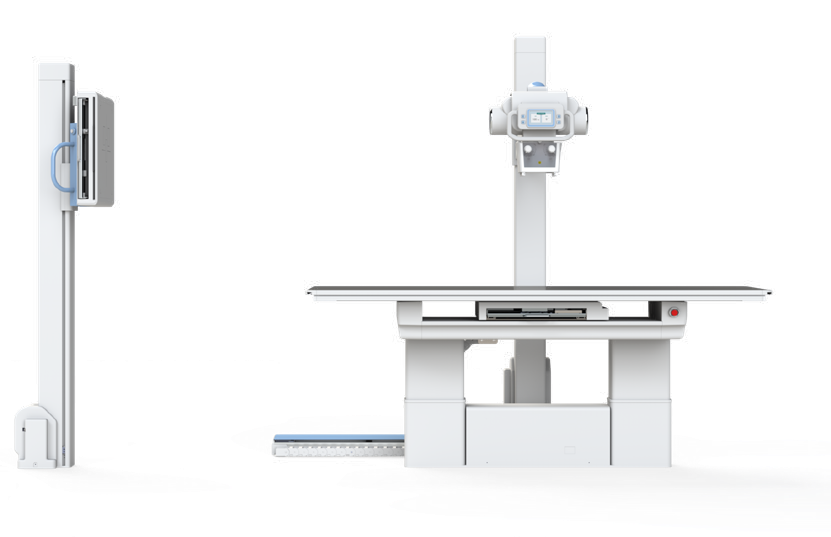

DRAY GX300

Advanced 6-Way FMTS System with Elevating Table

DRAY GX300 (LAVID-F300) offers superior versatility with a 6-way floating and elevating table, designed for high patient throughput. Equipped with a powerful generator (up to 85kW) and intuitive touch screen controls, it ensures optimal workflow in any clinical environment.

  • 6-Way Table: Floating & Elevating (Max Weight 300kg)
  • High Power: 55kW / 85kW Generator Options
  • Smart Control: 10.1" Touch Screen on Tube Head
  • Flexible Stand: Floor Mounted with wide travel range
Inquiry Now

System Specifications

Generator (SGX-01 Series)

Model 55kW Option 85kW Option
Output Power Max 150kV, 630mA Max 150kV, 1000mA
Input Power 380/480 V3~, 110A 380/480 V3~, 165A
kV / mAs Range 40~150kV / 0.1~630mAs 40~150kV / 0.1~1000mAs

Mechanical System

Patient Table 6-Way Elevating / Tabletop 220x80.5cm / Max Load 300kg
Table Elevation Min 57.4cm ~ Max 87.4cm (Vertical Travel)
Tube Stand Floor Mounted / Touch Screen Display (10.1")
Bucky Stand Vertical Travel: Min 40cm ~ Max 189cm

X-ray Tube Options

Manufacturer Canon (E7252X) Siemens (RAY-15)
Focal Spot 0.6mm / 1.2mm 0.6mm / 1.2mm
Anode Heat Content 210 kJ 283 kJ
Max Voltage 150 kV 150 kV

Dimensions & Range

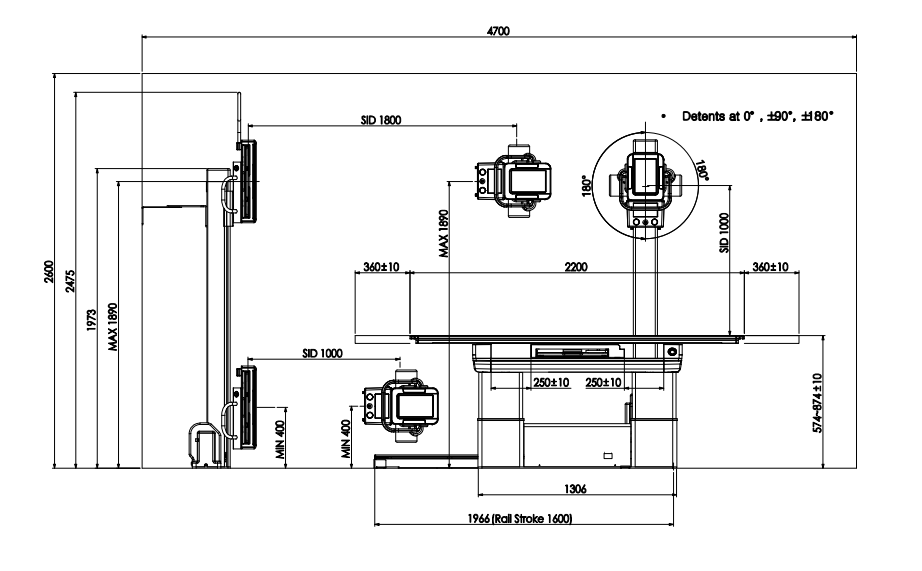

DRAY GX300 Dimensions

* Unit: mm / System dimensions may vary by option.
