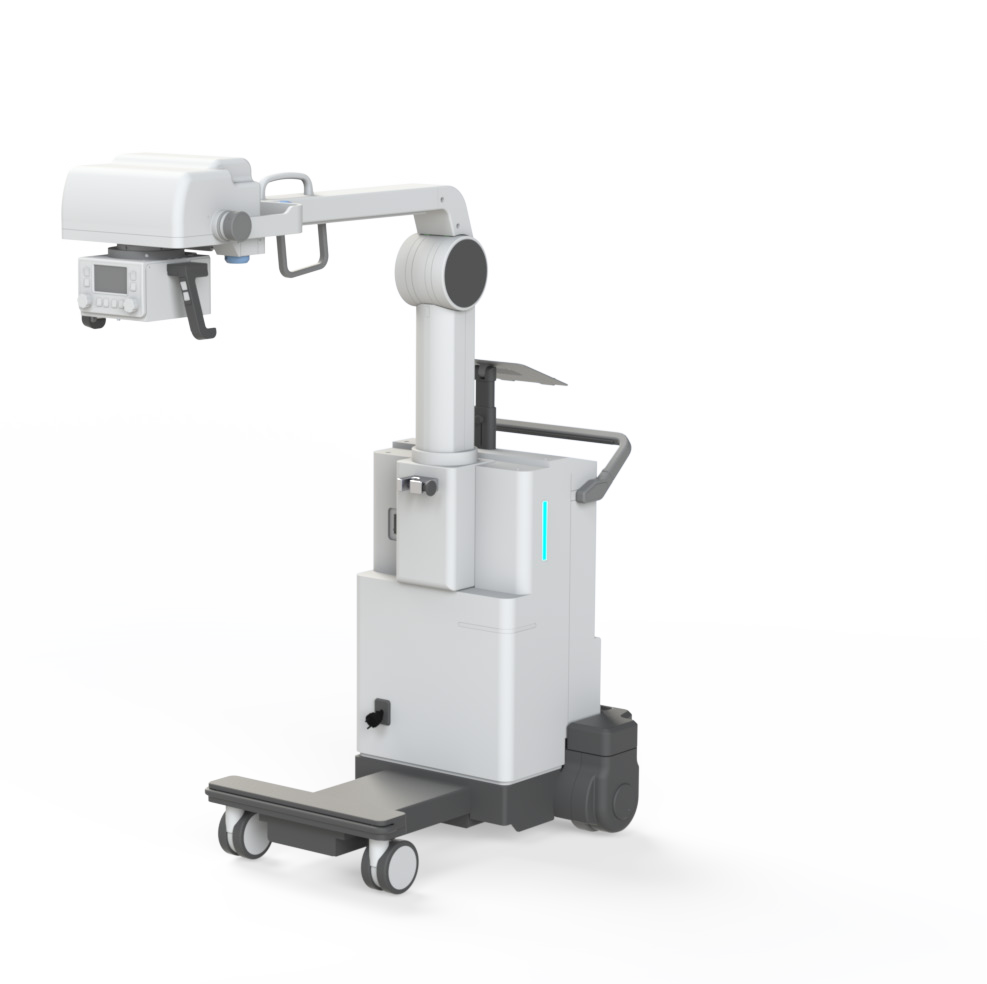

Dray-MX320

32kW High-Power Mobile X-Ray System

The Dray-MX320 (SMX-320A) delivers exceptional imaging power with a 32kW generator and high-performance Canon tube. Equipped with a motor drive system and an Auto Collimator, it offers hospital-grade performance and effortless mobility.

High Power: 32kW Output (Large Focus) / Max 125kV
Premium Tube: Canon E7846 (0.6/1.3mm Focal Spot)
Smart Tech: Auto Collimator & 4.3" Touch Screen
Mobility: Motor Drive Battery (6 hours operation)

Inquiry Now

Output Power	32 kW (Large Focus) / 11 kW (Small Focus)
X-ray Tube	Canon E7846 (Focal Spot 0.6/1.3mm)
kV / mAs Range	40~125kV / 0.5~400mAs
Collimator	Auto Collimator / Rotation ±90° / 4.3" Touch Screen
Sensors	Ultrasound SID Sensor
Motor Battery	Available time: 6 hours
Input Power	120V / 220-240V~ (50/60) Hz
Weight	293 kg

Output Power

32 kW (Large Focus) / 11 kW (Small Focus)

X-ray Tube

Canon E7846 (Focal Spot 0.6/1.3mm)

kV / mAs Range

40~125kV / 0.5~400mAs

Collimator

Auto Collimator / Rotation ±90° / 4.3" Touch Screen

Sensors

Ultrasound SID Sensor

Motor Battery

Available time: 6 hours

Input Power

120V / 220-240V~ (50/60) Hz

Weight

293 kg

Dray-MX320

System Specifications

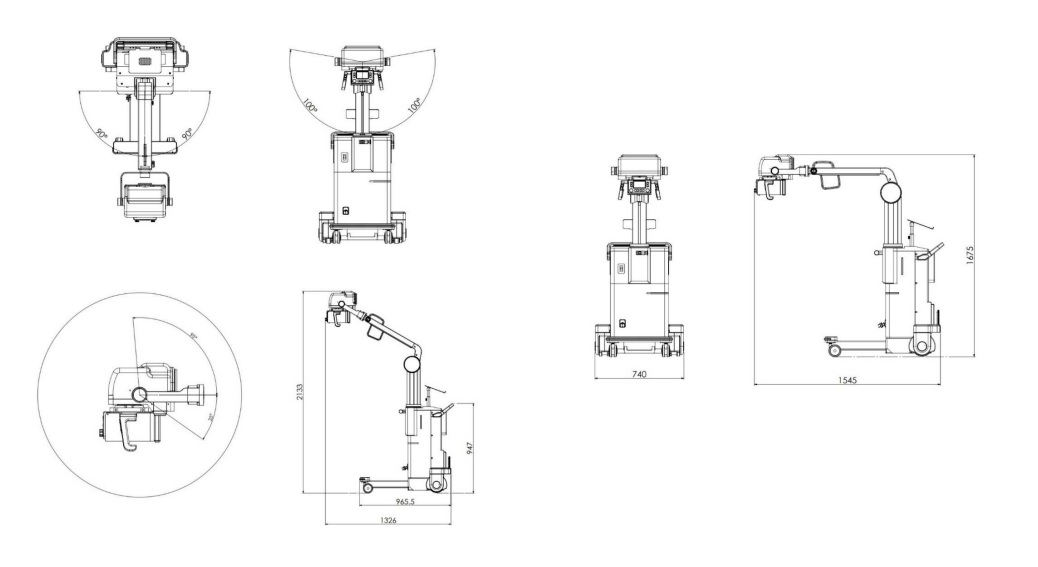

Dimensions
