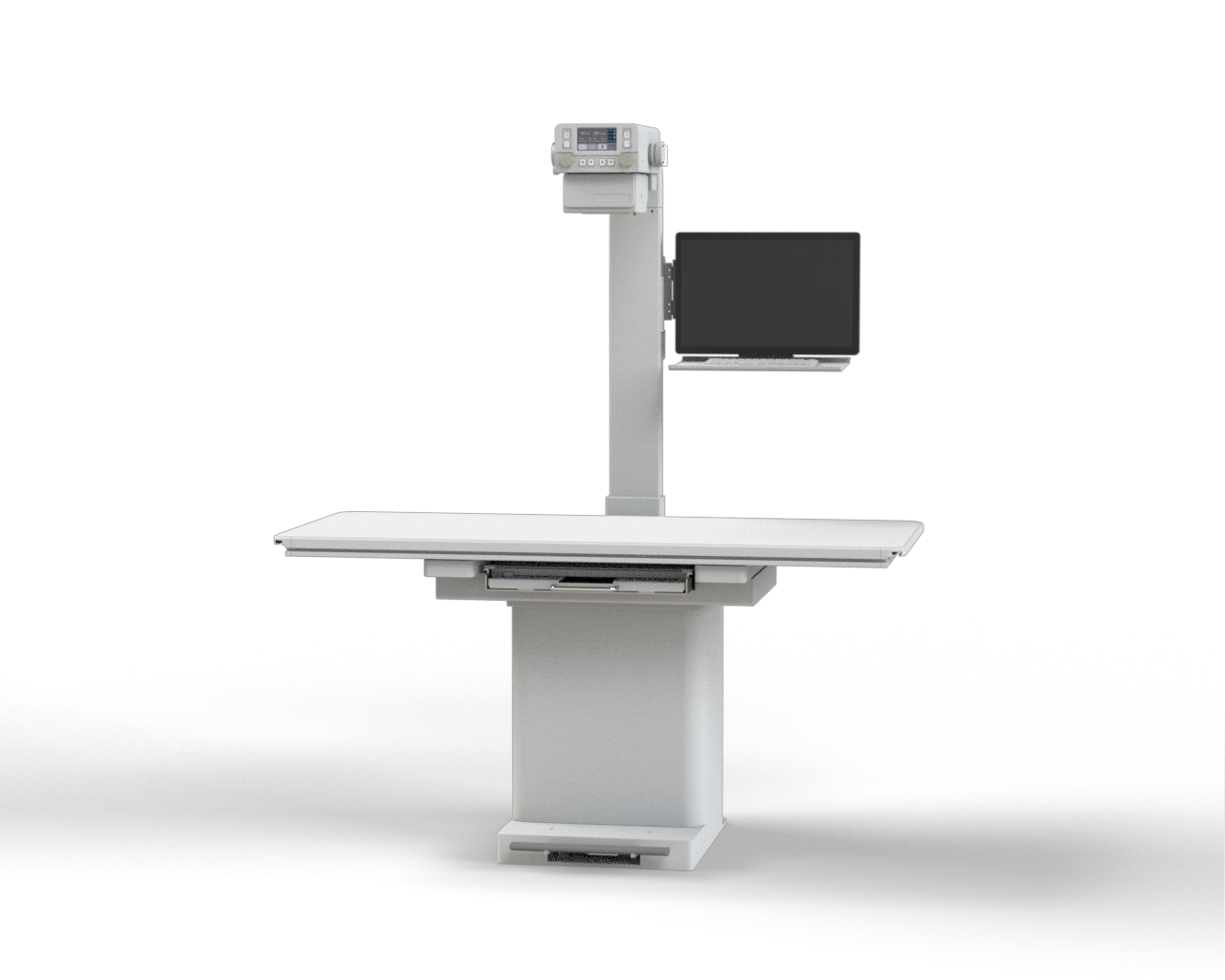

DRAY VX110

5kW VET System with Floating Table & Fluoroscopy

The Dray-VX110 (LOVET-110) offers advanced capabilities for veterinary diagnostics. Equipped with a 4-way Floating Table and Fluoroscopy mode, it provides superior positioning flexibility and comprehensive imaging options in a compact, integrated design.

Convenience: 4-Way Floating Tabletop (150cm)
Advanced Mode: Radiography + Fluoroscopy Capable
High Performance: 5kW Output / 150kHz Inverter
Easy Install: Integrated Stand & Table Design

Inquiry Now

Output / Inverter	5 kW / 150kHz High Frequency
Modes	Radiography / Fluoroscopy / Pulse Mode
kV Range	40 ~ 110kV (1kV Step)
mAs Range	0.32 ~ 200mAs (Large) / 0.32 ~ 40mAs (Small)
Focal Spot	0.5 mm (Small) / 1.8 mm (Large)
Table	150cm Floating Table (Mechanical Brakes)
SID (Source to Image)	105 cm (Fixed)
Weight	Approx. 250 kg

Output / Inverter

5 kW / 150kHz High Frequency

Modes

Radiography / Fluoroscopy / Pulse Mode

kV Range

40 ~ 110kV (1kV Step)

mAs Range

0.32 ~ 200mAs (Large) / 0.32 ~ 40mAs (Small)

Focal Spot

0.5 mm (Small) / 1.8 mm (Large)

Table

150cm Floating Table (Mechanical Brakes)

SID (Source to Image)

105 cm (Fixed)

Weight

Approx. 250 kg

DRAY VX110

Technical Specifications

Key Advantages
