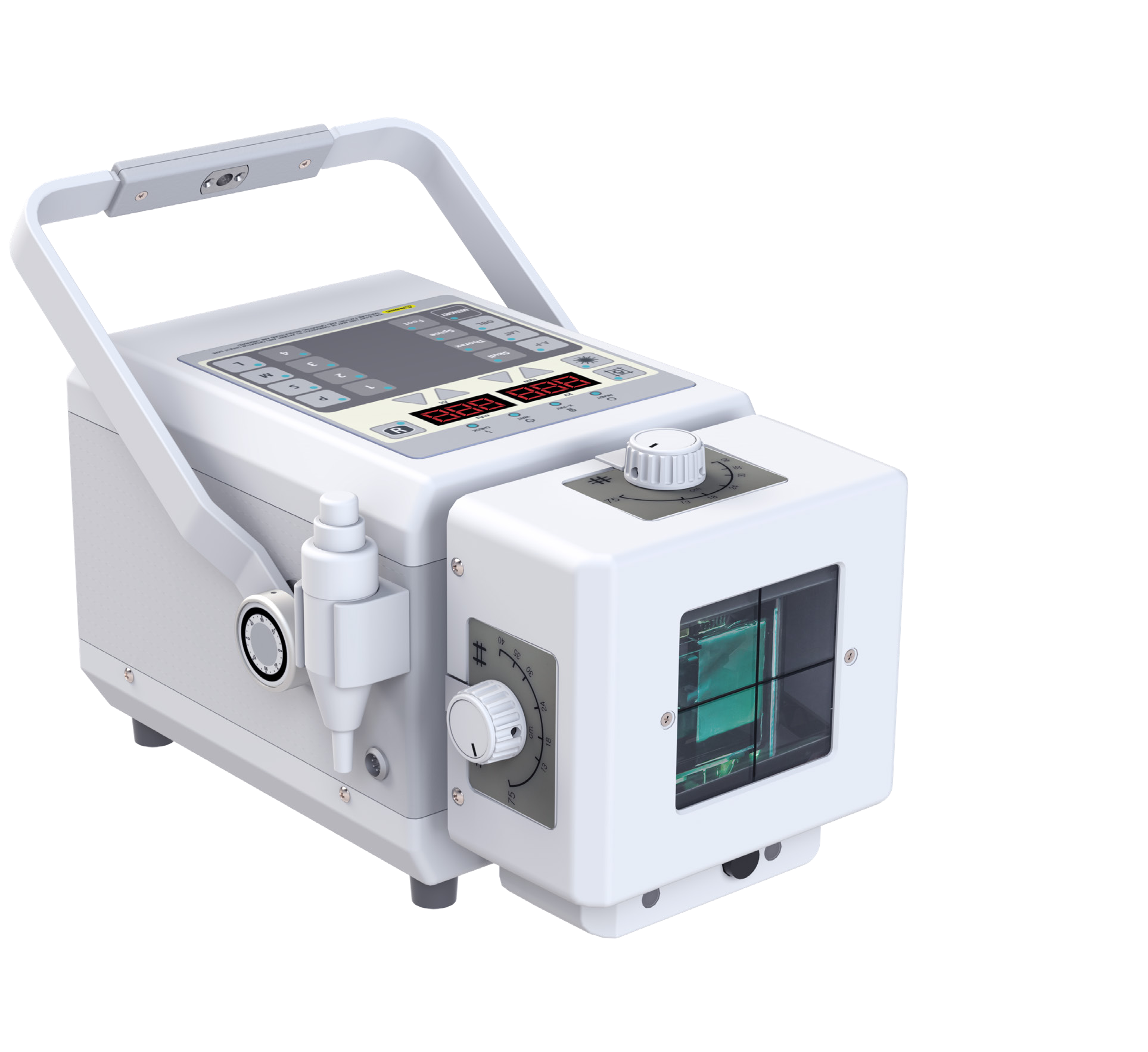

DRAY PX24

2.4kW High-Frequency Portable X-Ray

The Dray-PX24 (SPX-024) is a powerful 2.4kW portable X-ray system that provides high-resolution imaging with a Canon tube. It features an advanced laser collimator and ultrasound sensor, delivering hospital-grade performance in a compact, portable design.

High Output: 2.4 kW Power / Max 100kV
Superior Tube: Canon D-124 (Focal Spot 1.2mm)
Precision: Laser Point & Ultrasound SID Sensor
User Friendly: LED Lamp (>160 lux) & OP Panel

Inquiry Now

Output Power	2.4 kW
kV Range	40 ~ 100kV (1kV Step)
mA Range	16 ~ 35mA
mAs Range	0.4 ~ 100mAs
X-ray Tube	Canon D-124 / Focal Spot 1.2mm
Collimator	Manual / LED Lamp (160 lux) / Laser Pointer
Sensors	Ultrasound SID Sensor
Input Power	200-240V AC, 50/60Hz
Weight	Approx. 11 kg

Output Power

2.4 kW

kV Range

40 ~ 100kV (1kV Step)

mA Range

16 ~ 35mA

mAs Range

0.4 ~ 100mAs

X-ray Tube

Canon D-124 / Focal Spot 1.2mm

Collimator

Manual / LED Lamp (160 lux) / Laser Pointer

Sensors

Ultrasound SID Sensor

Input Power

200-240V AC, 50/60Hz

Weight

Approx. 11 kg

DRAY PX24

System Specifications

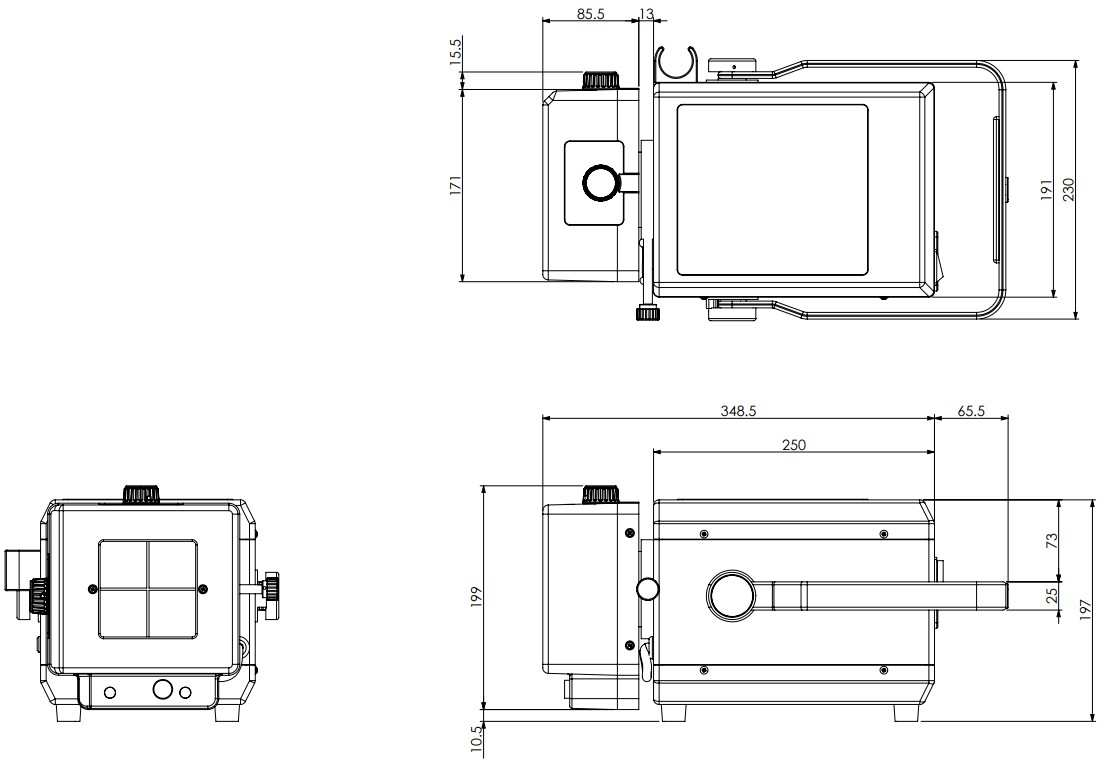

Dimensions
