DRAY VX100 System
Products > Veterinary > Dray-VX100

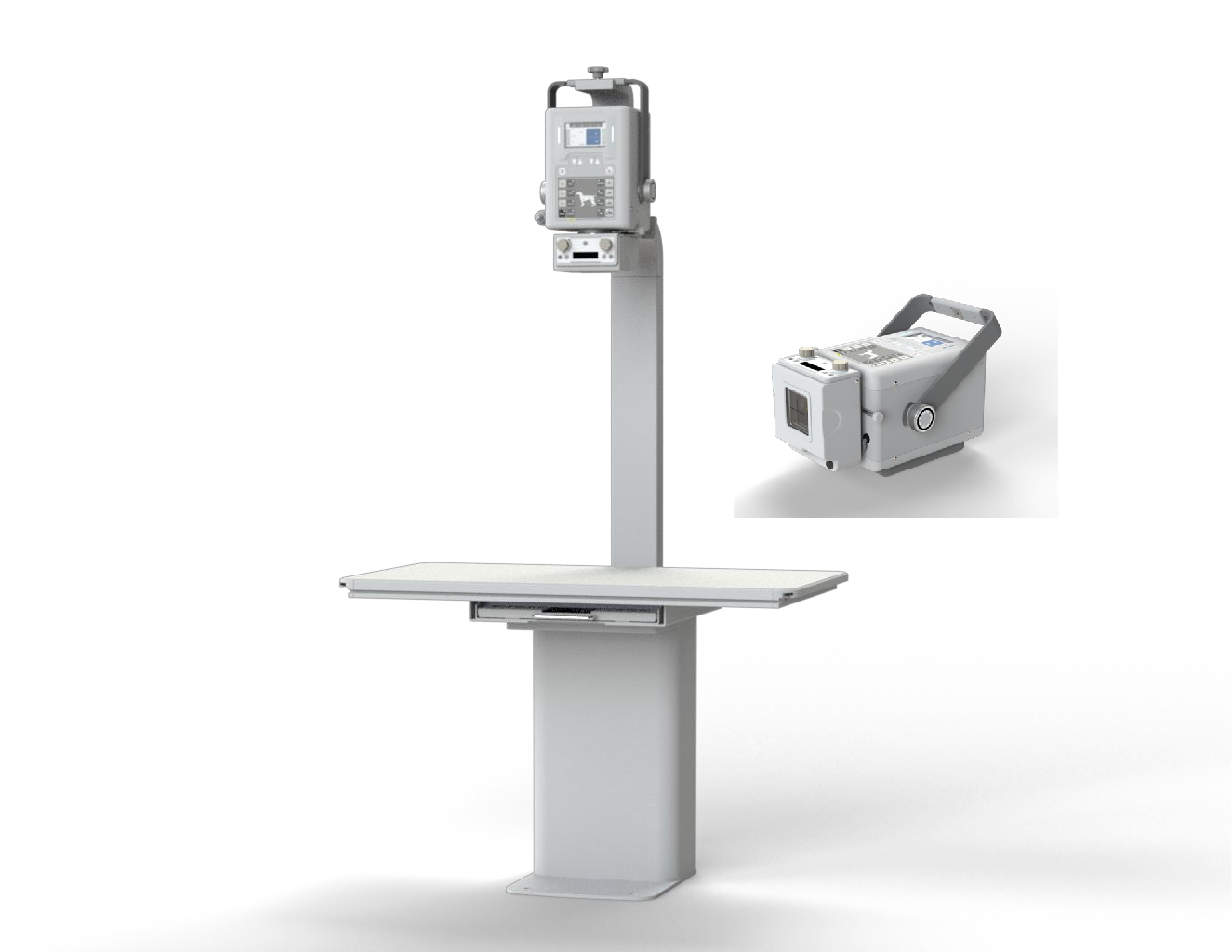

DRAY VX100

5kW Hybrid VET Portable X-Ray System

The Dray-VX100 (LOVET-100) is a versatile solution for veterinary clinics. It combines a high-power 5kW Ultra-capacitor portable unit with a compact stationary table, providing the flexibility of both a portable device and a table system in one cost-effective package.

  • Hybrid Design: Portable Unit + Stationary Table
  • High Power: 5kW Ultra-capacitor Type
  • Smart Tech: Auto Collimator & Ultrasound SID Sensor
  • Compact: Ideal for small clinics with limited space
Inquiry Now

Technical Specifications

Generator Type 5 kW Ultra-capacitor Type
kV / mAs Range 40~110kV / 0.32~200mAs
Focal Spot 1.8 mm (Target Angle 16°)
Collimator Auto Collimator / 5" LCD Screen / SID Sensor
Table Top Size 120 x 60 cm (Stationary Table)
SID (Source to Image) 100 cm (Fixed)
Input Power 120V / 220-240V~ (50/60) Hz
Weight (Portable) 18.5 kg

Key Advantages

  • ★ Integrated Design: Nicely integrated compact design allows for easy and simple installation.
  • ★ Dual Functionality: Suitable for clinics that want to have both a portable X-ray and a table VET system option.
  • ★ Cost-Effective: An optimal solution for VET clinics with limited budget or space.
