DRAY PX18 System
Products > Portable X-ray > Dray-PX18

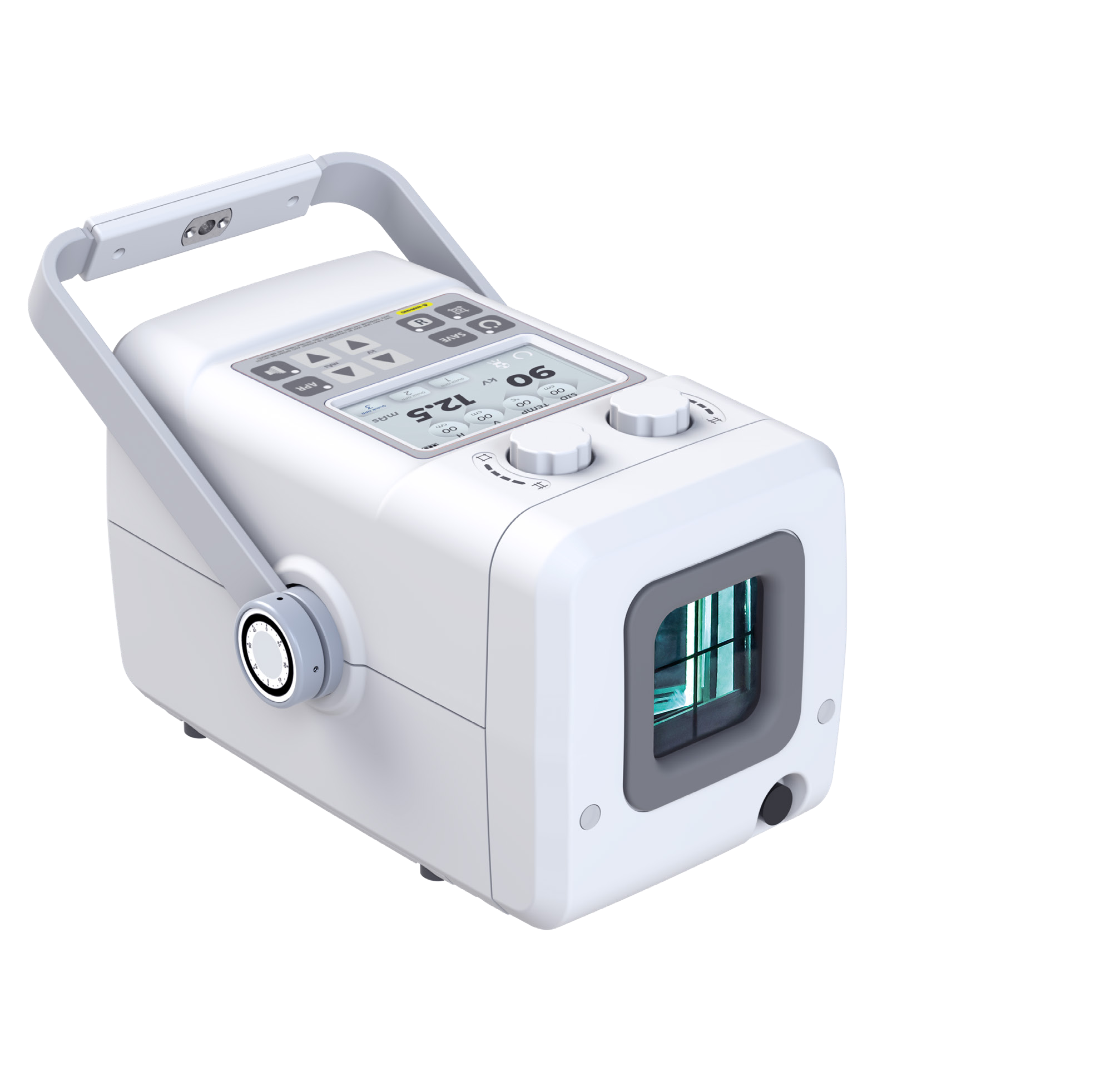

DRAY PX18

1.8kW Compact Portable X-Ray

The Dray-PX18 is a lightweight and compact portable X-ray system designed for essential mobile imaging. With a 1.8kW output and high-performance Toshiba tube, it delivers reliable imaging quality in a highly portable form factor, perfect for versatile clinical applications.

  • Output Power: 1.8 kW (Max 100kV)
  • X-ray Tube: Toshiba D-0814 (Focal Spot 0.8mm)
  • Lightweight: Approx. 9.8 kg for easy mobility
  • Features: LED Collimator & OP Operation Panel
Inquiry Now

System Specifications

Output Power 1.8 kW
kV Range 40 ~ 100kV (1kV Step)
mA Range 12 ~ 30mA
mAs Range 0.3 ~ 50mAs
X-ray Tube Toshiba D-0814 / Focal Spot 0.8mm
Collimator Manual / LED Lamp / Laser Pointer
Input Power 110V / 220V AC, 50/60Hz
Weight 9.8 kg

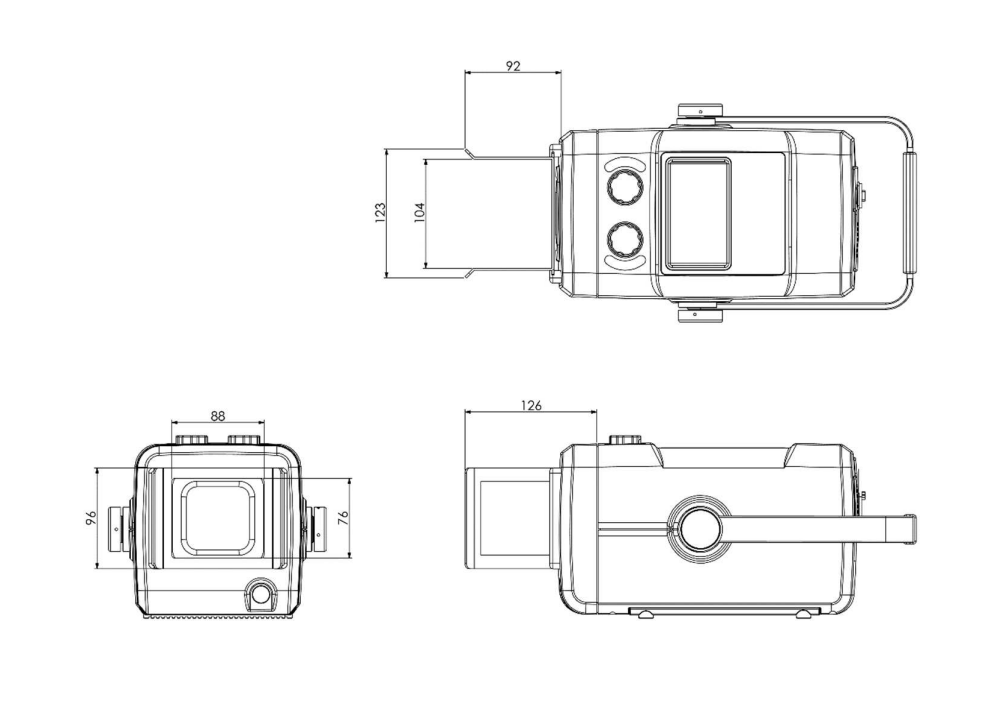

Dimensions

DRAY PX18 Dimensions

* Unit: mm / Compact Design
