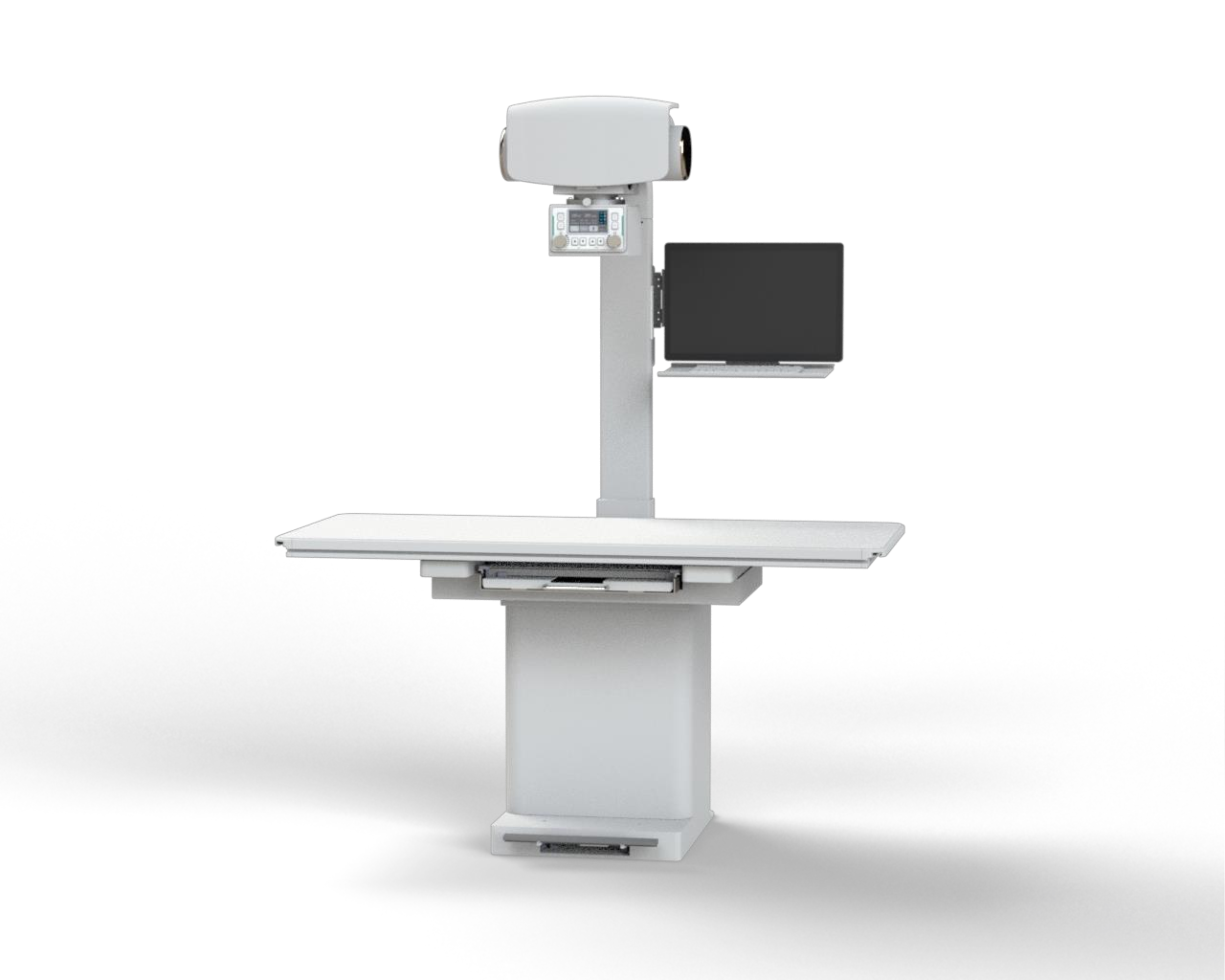

DRAY VX130

Flagship 40kW VET X-Ray System

The Dray-VX130 (LOVET-130) is our most powerful veterinary system, featuring a massive 40kW generator and a heavy-duty 140kHU Rotating Tube. Equipped with a Digital Servo Motor Collimator and 4-way floating table, it delivers uncompromising performance for busy clinics.

Max Power: 40kW Output (125kV / 500mA)
Durable Tube: Rotating Anode (140kHU) for High Volume
Smart Control: Digital Servo Motor Collimator with Touch Screen
Workflow: 4-Way Floating Table & Ultrasonic SID

Inquiry Now

Technical Specifications

Max Power	40 kW (High Output)
X-Ray Tube	Rotating Tube (140kHU) / Focal Spot 1.0/2.0 mm
kV Range	40 ~ 125kV (1kV Step)
mA / mAs Range	60~500mA / 0.4~400mAs
Collimator	Digital Servo Motor Control / 4.3" Touch Display
Control Features	kV, mAs, APR Control on Collimator Screen
Table	Fixed & Floating Table
Input Power	120V / 220-240V~ (50/60) Hz, 10A

Key Advantages

★ Highest Performance: 40kW power and Rotating Tube support clear images even for large animals.
★ Advanced Collimator: Features Digital servo motor blade control and Ultrasonic SID measurement.
★ Convenient Workflow: Integrated floating table and user-friendly touch interface (APR control).
★ Low Dose: Small focal spot option reduces X-ray dose while maintaining sharpness.
