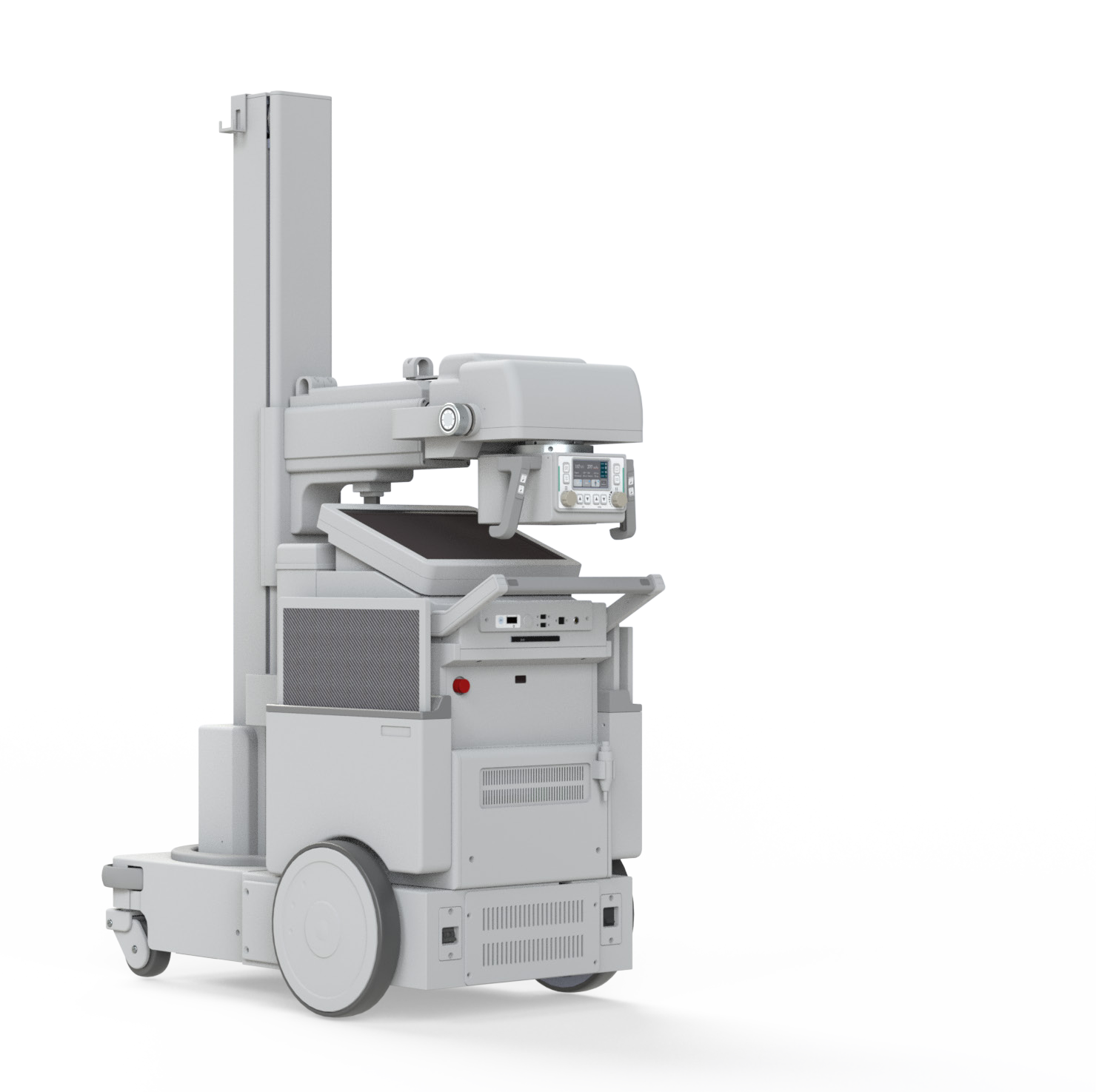

Dray-MX320 Pro

32kW Mobile System with 19" Large Display

The Dray-MX320 Pro (SMX-320-M1) combines powerful 32kW Monoblock performance with a massive 19-inch Color TFT LCD. Featuring an advanced Auto Collimator and high-frequency inverter, it ensures crystal-clear imaging and superior operational efficiency.

Large Display: 19" Color TFT LCD Monitor
High Power: 32kW Output (Large Focus)
Precision: Auto Collimator & Ultrasound SID Sensor
Control: 4.3" LCD Touch Screen on Collimator

Inquiry Now

Output Power	32 kW (Large Focus) / 11 kW (Small Focus)
Monitor	19 inch Color TFT LCD
kV / mAs Range	40~125kV / 0.5~400mAs
Focal Spot	0.6 mm (Small) / 1.3 mm (Large)
Collimator	Auto Collimator / 4.3" LCD Screen / SID Sensor
Input Power	100-240V~ (50/60) Hz, 10A
Anode Heat Content	80 kJ

Output Power

32 kW (Large Focus) / 11 kW (Small Focus)

Monitor

19 inch Color TFT LCD

kV / mAs Range

40~125kV / 0.5~400mAs

Focal Spot

0.6 mm (Small) / 1.3 mm (Large)

Collimator

Auto Collimator / 4.3" LCD Screen / SID Sensor

Input Power

100-240V~ (50/60) Hz, 10A

Anode Heat Content

80 kJ

Dray-MX320 Pro

System Specifications

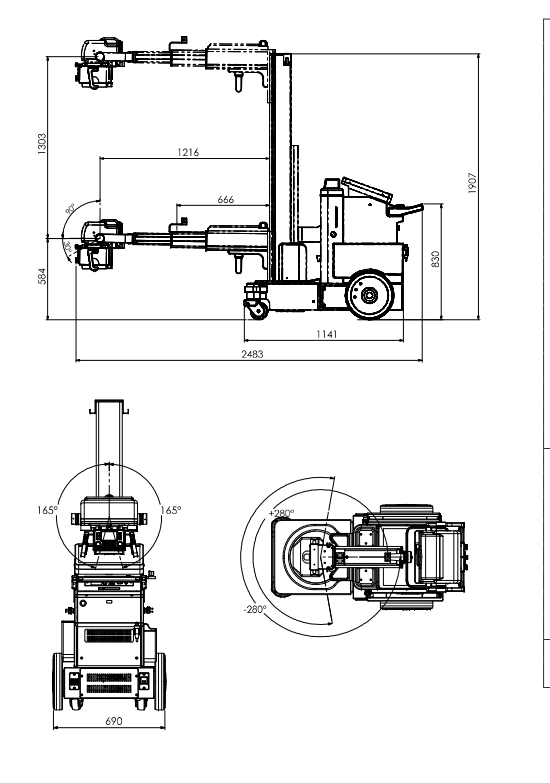

Dimensions
