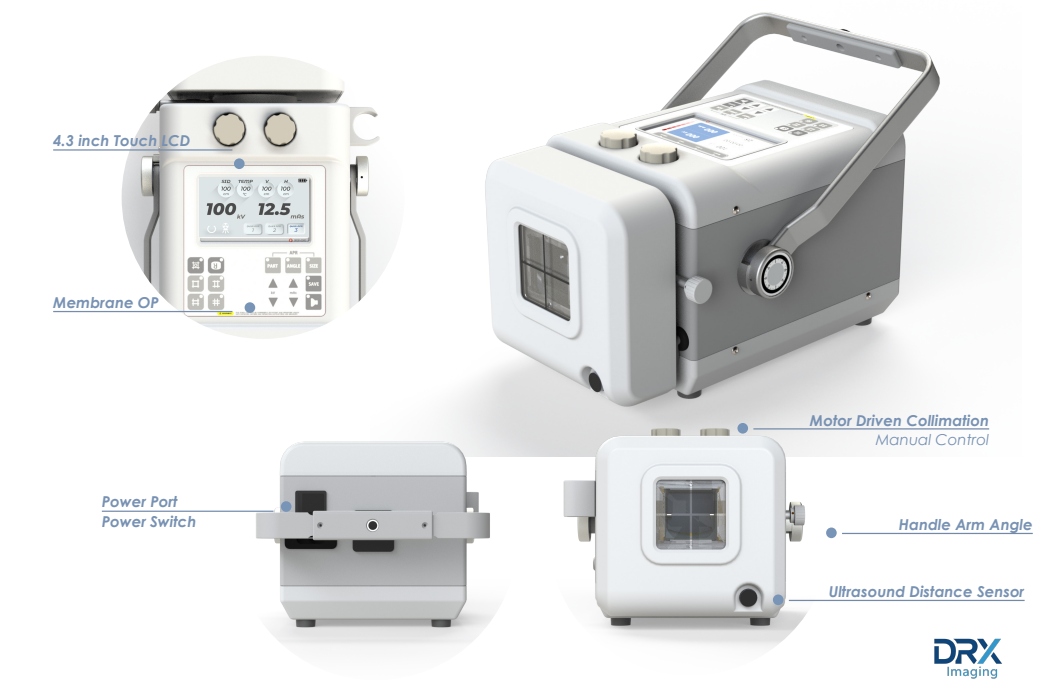

DRAY PX24S

2.4kW Hybrid Portable X-Ray (Ultra-capacitor)

The Dray-PX24S (SPX-024-S) is an innovative hybrid portable X-ray system powered by Ultra-capacitor technology. It combines a powerful 2.4kW output with fast charging capabilities, offering cordless freedom and reliable performance for efficient mobile imaging.

Hybrid Power: Ultra-capacitor Type (Cordless Capable)
High Output: 2.4 kW Power (100kHz Inverter)
Superior Tube: Canon D-124 (Focal Spot 1.2mm)
Smart Tech: Auto Collimator & Ultrasound SID Sensor

Inquiry Now

Power Source	Ultra-capacitor Type (Fast Charging)
Output Power	2.4 kW (Max 100kV)
kV Range	40 ~ 100kV (1kV Step)
mAs Range	0.4 ~ 100mAs
X-ray Tube	Canon D-124 / Focal Spot 1.2mm
Collimator	Auto Collimator / LED Lamp / Laser Pointer
Sensors	Ultrasound SID Sensor
Input Power	120V / 220-240V AC (50/60Hz)
Weight	Approx. 12 kg

Power Source

Ultra-capacitor Type (Fast Charging)

Output Power

2.4 kW (Max 100kV)

kV Range

40 ~ 100kV (1kV Step)

mAs Range

0.4 ~ 100mAs

X-ray Tube

Canon D-124 / Focal Spot 1.2mm

Collimator

Auto Collimator / LED Lamp / Laser Pointer

Sensors

Ultrasound SID Sensor

Input Power

120V / 220-240V AC (50/60Hz)

Weight

Approx. 12 kg

DRAY PX24S

System Specifications

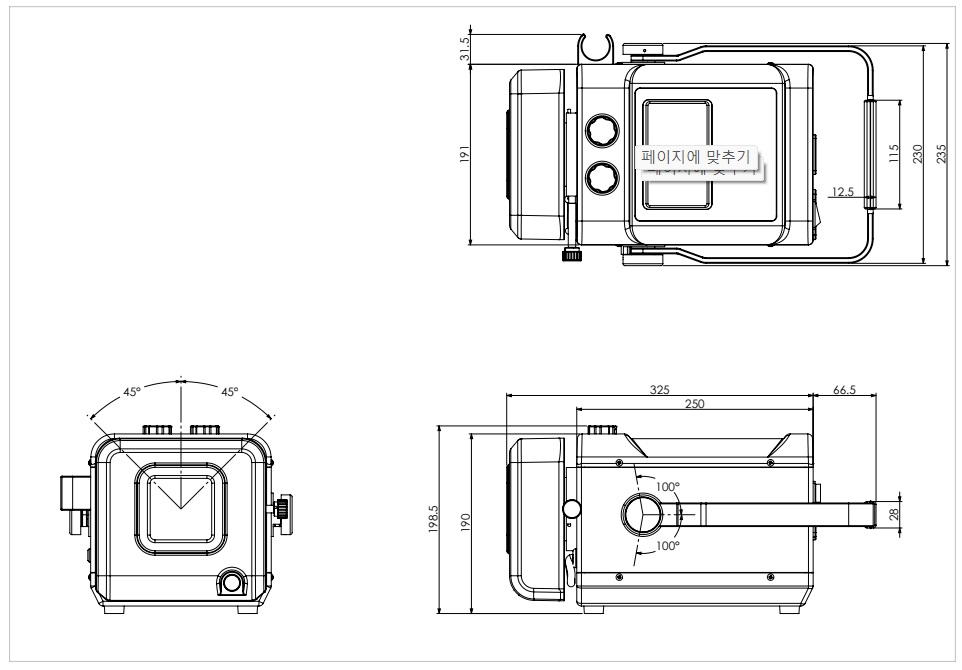

Dimensions
